Quad UHD video synthisizer(KS-FH4000)
1. Model: KS-FH4000
2. HDMI input support HDMI1.4 and MHL,HDMI output support HDMI2.0
3. HDMI support HDCP2.2

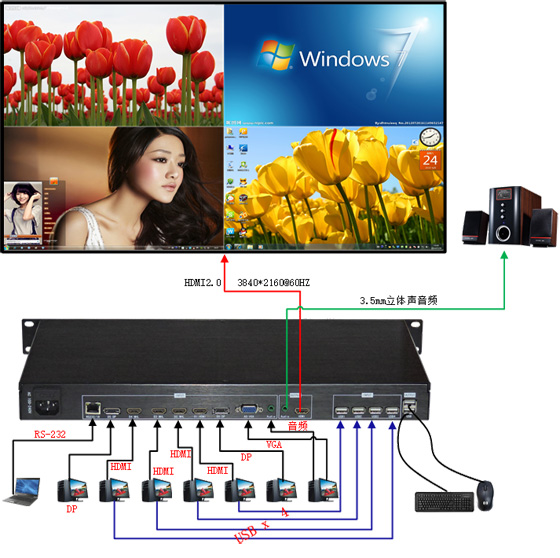

4. 1channel VGA + 2 channel DP + 4 channel HDMI total 7 numbers signal input
5. Quad video or dual video or one full video display on the big screen
6. Include USB switcher function as KVM
7. HDMI output 3840*2160@60Hz max.
1 Product Overview
KS-FH4000 quad UHD video synthisizer is a high-performance image processor, and it's main function is to make 4 HD or analog signal display in one ultra HD display unit synchronously under quartering,and realize PIP、POP function.KS-FH4000 quad UHD video synthisizer can support 1 channel VGA、2 channel DP、4 channel HDMI signal input.The highest DP input signal can support 3840*2160@60Hz,the highest HDMI input signal can support 3840*2160@30Hz,the VGA signal can support 1920*1200@60Hz and the highest output resolution can reach to 3840*2160@60Hz.
KS-FH4000 Support 1 channel HDMI 2.0 output, the output resolution and refresh rate up to 3840x2160 @ 6OHz, the output refresh rate of high-definition 4K video multiplexers is the highest on the market at present. Meanwhile, if input 4signal of 1920 * 1080 , 4K display unit may display under quartering , point-to-point display 4-way high-definition signals, 4 full HD 1080P video signal can be completely uncompressed displayed on a 4K display unit,and there is no any distinguish between 4 image signal connect a 1080P display unit with single1080P signal link a 1080P display unit.
Meanwhile, KS-FH4000 video synthisizer can also supports USB synchronous switch UHD video multiplexers, switch to a computer signal display full screen by a case key or remote control , the corresponding host computer's USB also synchronous switch, which realize the need of achieving synchronous switch mouse, keyboard of video conferencing.
KS-FH4000 UHD video synthisizer is use a relatively large number in standard products currently on the market ,products are mainly used in video conferencing, teaching, exhibitions ect ,where need to use single display unit simultaneously display multiple HD signals workplace.
2 Main Function
- 2.1 Supports 1 channel VGA, 2 channel DP, 4 channel HDMI (3 channel HDMI compatible MHL) signal input, the input resolution up to 3840 * 2160 @ 60HZ, downward compatible;
- 2.2 Supports one HDMI 2.0 output, the output resolution up to 3840 * 2160 @ 60HZ;
- 2.3 Support point-to-pointsimultaneous display 4 channel 1920 * 1080 FHD signal;
- 2.4 Input and output signal also support audio,also support stereo audio input bond with VGA and output with 3.5mm headphone jack;
- 2.5 2 USB signal output, USB connection support mouse and keyboard, and USB with image synchronous switch;
- 2.6 Single screen simultaneously displays four HD digital / analog signals, or switchingto whichever signal full-screen display;
- 2.7 Support PIP、 POP and full screen function
- 2.8 Wide support 100V ~ 240V AC input, can be commonly used to any country worldwide;
- 2.9 Standard 19-inch 1U chassis drawing directly put on the cabinet;
- 2.10 Support case key, infrared remote control, RS232 serial control and the center control;
3 Detailed Introduction about KS-FH4000
3.1. Pure hardware construction
Adopt pure hardware construction ,without CPU and memory,so booting only need 3 to 5 minutes,system stability,without crash,virus and system breakdown;can uninterrupted work for 24 hours a day of 365 days a year .3.2. Advanced DSP image processing techniques
Adopt DSP that is the most powerful image chip process technology at present.DPS support various world's leading image processing technology,for example:DCDI edge smooth、ACM color automatically adapt、CSS light crosstalk suppression、SHARPNESS enhancement、dynamic contrast ratio enhancement、the real six axis color overlap、eliminate the noise amplification ect.In addition,possess many advanced function like 3D comb filter video decoding function,3D noise reduction and automatic adapt moving compensation's remove isolation technology,skin color adjust,enhance color brightness,GAMMA adjust and frame frequency switch ect.Which make output image texture smooth and sharp、clear and fluent、bright color without sawtooth and trailing .
3.3. Powerful operation capability
Data use parallel processing,output port occupy one channel and data bandwidth reach 10.2G/S of each channel .So It can fully achieve high resolution of 3840*2160@60HZ display.High speed dynamic image without trailing、delayde、tear、frame loss、image catch up phenomenon.3.4. Supports 3840 * 2160 UHD input and output signals
KS-FH4000 UHD video synthisizer supports 1 channel VGA, 2 channel DP,4 channel HDMI signal input, HD video supports interlaced and progressive input. Products up to ultra high resolution of 3840 * 2160 @ 60HZ signal input, and downward compatible; all input signals through professional-level image processing chip, HDMI signal of 60HZ unified progressive output, the maximum output resolution support 3840X2160 @ 60HZ, At the same time the user can choose other resolutions according to the needs , such as 1920 * 1080,2560x1440.3.5. USB switch function
KS-FH4000 video synthisizer can also support USB with the picture simultaneously switching function, which perfect solution the problem of preproduct can't synchronous switch video and USB connecting devices (such as USB mouse, keyboard, etc.) The product will be widely used in various of video conferencing systems and other places, allowing users to use the product more convenient, more efficient, more economical of display terminal device and save more room of operation.3.6. Ultra-Low Power
KS-FH4000 using ultra-low-power design, the actual power under operational state is only around 3W , no cooling fan, energy conservation and environmental protection, no noise pollution, adapt to a variety of relatively strict noise control meeting or other places.3.7. Multiple display modes

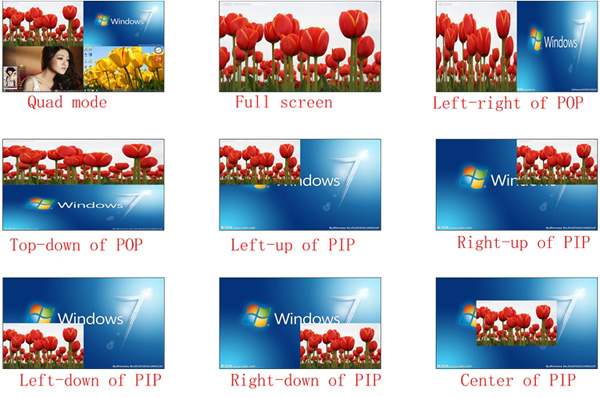

KS-FH4000 not only four split screen display,but full-screen single display, it can also support a variety of different display modes, the following are all display modes:
3.8. Audio and video switching functions
KS-FH4000 4K Quad video synthisizer except can display video signals, but also supports audio and image synchronization switch or under quad mode select a picture corresponding audio play,which to fill the gaps that pre HD video multiplexers can not be achieved audio capabilities.4 Control
4.1. Software Control
KS-FH4000 UHD video synthisizer contain green control visual interface ks sofeware.exe,available when starting up ,can achieve global function by control sofeware
