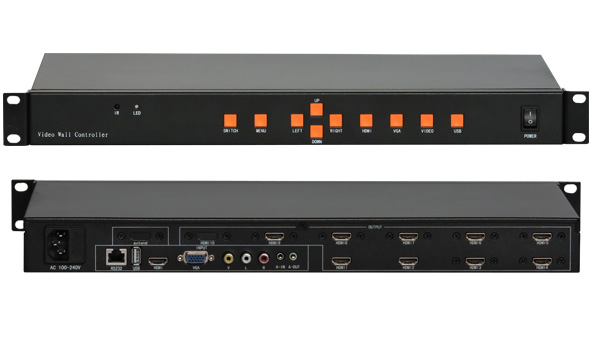

multi screen video wall controller(KS-BOX(X)4<=X<=10)
1. Model: KS-BOX(X) 4<=X<=10
2. HDMI compatible HDMI1.3 and DVI1.0,and support HDCP1.4
3. Mosaic many different mode as:2*2,2*3,2*4,2*5,3*3 and so on
4. any output signal can be mirrored
5. input upto 1920*1200@60Hz
6. USB decode 1080P video and photo and txt
1. Product Introduction
KS-BOX(X) is a specific LCD TV, ultra-narrow LCD screen, HD projector multi-screen processor, support 4 to 10 channel HDMI signal output, connected to four LCD TV or other display device, can be customized 2*2,2*3,2*4,2*5,3*3 and other modes according to user needs. KS-BOX(X) using high-definition processing chip, support 1080P input and output signals. As well as supports 1 channel composite video, 1 channel VGA, 1 channel USB, 1 channel HDMI inputs, all inputs can be switched to the large screen multi-screen display , and the audio and the video output simultaneously.Use more simple, intuitive in operation when multi-screen processor designed infrared remote control, the center control can also be controlled via RS-232. User through buttons or the remote control process one-click shortcut control and full-function, the operation is more humane, more simple.
2 Features:
2.1. Multi-screen processing
KS-BOX(X) Multi-screen processor supports 4 to 10 channel HDMI signal output, the connections are LCD TV or other display devices such as projectors, DLP, plasma and other display unit, the display unit spliced to form a large screen. KS-BOX(X) can be customized 2*2,2*3,2*4,2*5,3*3 and other mosaic pattern according to the user's requirements.2.2. input signal

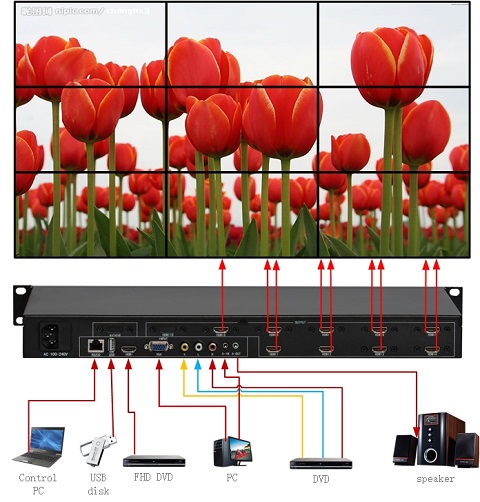

Supports 1 channel composite video, 1 channel VGA, 1 channel HDMI, 1 channel USB total of four signal inputs, HDMI and USB signal interface comes with audio decoding, composite video and VGA signal plus the corresponding audio binding interface, all the input video signal can achieve synchronized output switching with audio. interfaces is as follows:
2.3. Mirroring
Compared with ordinary splicing products, KS-BOX(X) has 180-degree image flip function for each individual display. Users use ordinary LCD TV when multi-screen process, a up row of LCD TVs rotated 180 degrees, thereby significantly reducing LCD splicing gap, reducing image distortion caused by the seam is too large, as shown below:
2.4. Edge mask function
All tiled display unit has some physical border gap, under no edge shielding processing , the image will appear the pull-apart on visually , feel very unnatural ; past the edge mask processing the image without deformation, stretching, more natural and realistic on visual . As contrast image shown before and after handling the shield edge;
2.5. U disk play
Our products enable USB playback and stitching. After the basic functions of LCD splicing, users achieve simple video or picture format stitching playback, on the USB interface of our products just need to insert a U disk , no special configuration a computer or other playback devices, simple and practical .USB can support a number of popular video, pictures, MP3, TXT documents;
it can support the selected video or all Play;
It can support all video round robin play, pause, fast-forward, the program list and other functions.
2.6. Remote control function
Remote control special customized for the KS-BOX(X), all functions of multi-screen with remote control buttons correspond exactly, non-market public mode remote control. All functions can be done on the remote control like multi-screen processor settings, switching, adjustable, and use ultra-sensitive design, remote control distance up to 7-10 meters.
3. Customizable multi-screen mosaic(Following are part of customizing pattern)
