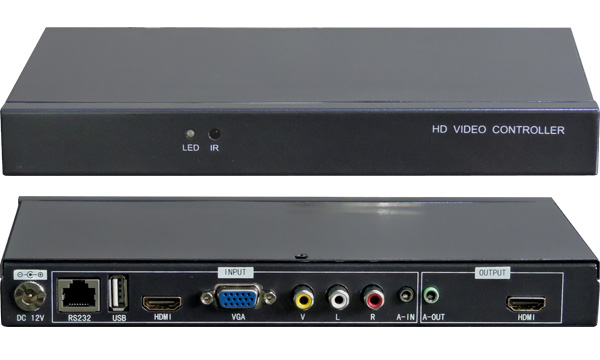

HD Video Subtitles controller(KS-WPS41)

1. Model No.:KS-WPS41

2. HDMI support HDMI1.3 (HDCP1.4) and DVI1.0 protocol
3. Input:1 channel composite video, 1 channel VGA,1channel HDMI, 1 channel USB (U disk), all input signals can be superimposed characters
4. 1 channel HDMI signal output, input and output of the maximum support for full HD 1920*1080 signal
5. support for image rotation of 180 degrees, the image line switching, U disk playback into HDMI signal output
6. all input signals to support audio, audio and video synchronization switch
7. support for image capture, image compression

1st. Product description

    KS-WPS41 is a versatile image processor, a single piece of equipment to complete the caption add, multi-signal times line switching, signal format conversion, image 180 degrees overturn, cut image , image compression, and other functions.
Product support one composite video, 1 channel VGA, 1 channel HDMI, 1 channel USB Signal Input, 1 channel HDMI and 1 channel independent audio signal output, input and output signal can support full HD 1920 * 1080 / 60HZ. All input signals can support the image and audio simultaneously switch.


2nd. Detailed product features

2.1  HD fold line function

    KS-WPS41 support 1 channel composite video, 1 channel VGA, 1 channel HDMI, 1 channel USB signal input, all input signals are embedded or binding external audio.
    1 channel HDMI and 1 channel audio of 3.5mm aperture output port, via the infrared remote control or software control can switch any 1 channel signal of 4 input signals output to a display device, and audio and video synchronization switching.


2.2  Caption add funtion

By setting the controlling software,you can achieve any input in English and Chinese characters superimposed to the display unit, and is free to set a variety of characters to achieve results, as follows:
Font colors: red, green, yellow, blue, black, white;
Background colors: red, green, yellow, blue, black, white, transparent;
Subtitles Switch: quick select subtitles on or off;
Text Size: Change the size of the superimposed characters, divided into large, medium and small ;
Text Position: upper, lower, defined characters displayed at the bottom or top of the image
Font Speed: Font still, medium, fast moving speed ;

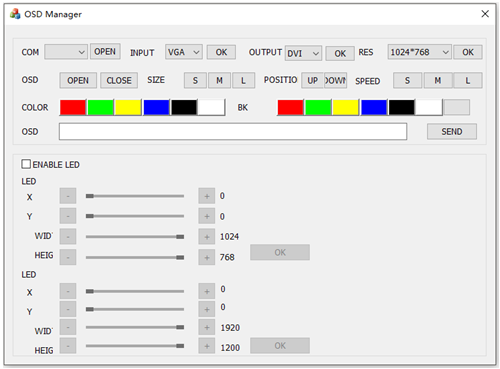

Production control software, as shown below:

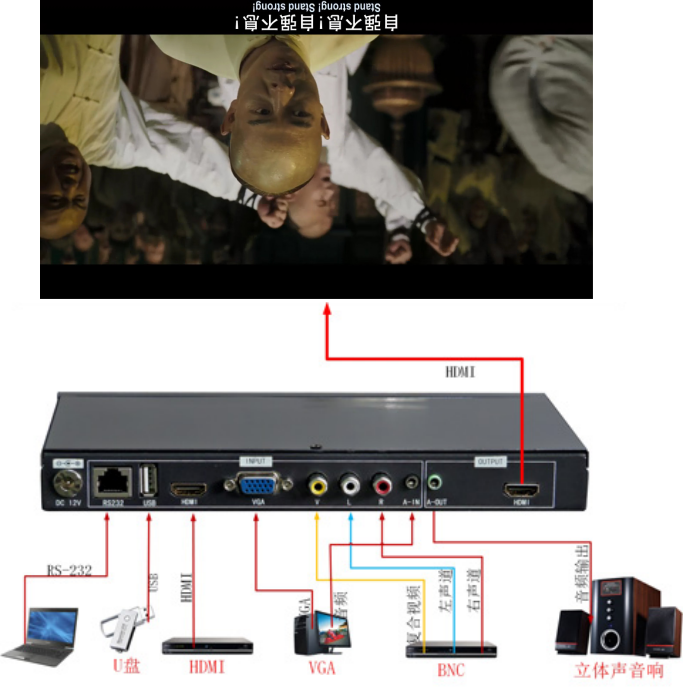

Caption add effect example:

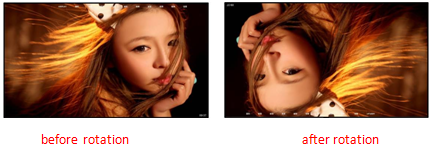

2.3  180 degree rotation function

By setting remote control, it can support 180-degree mirror image rotation function:

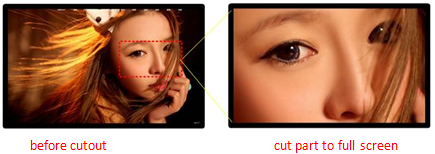

2.4  Image cut out function

Users can clipping of the input signal in any part according to their needs display into a big screen display, as shown below:

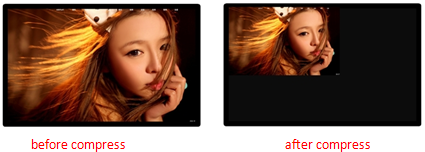

2.5  Image compression

Certain place, you need to compress enter the image before output to normal use, such as LED display resolutions generally irregular, when you need to full-screen display a computer desktop ,have to compress input signal, image compression as shown below:


2.6  U disk playback

The product can support USB interface, the user can insert a U disk into our equipment, play the videos, pictures, TXT documents, MP3 of U disk. Many places do advertising, product exhibitions, often only need to play some video or some pictures, so that only a U disk , without the need to configure additional player or computer, easier to use and convenient.
The main function of U disk player as follows:
can play videos, pictures, TXT documents, MP3 of U disk ;
the videos or pictures support some or all of the contents to play;
Support round-robin play;
By remote control support the next song, pause, playback controls;
It supports a variety of image playback mode, such as fade, blinds ...
