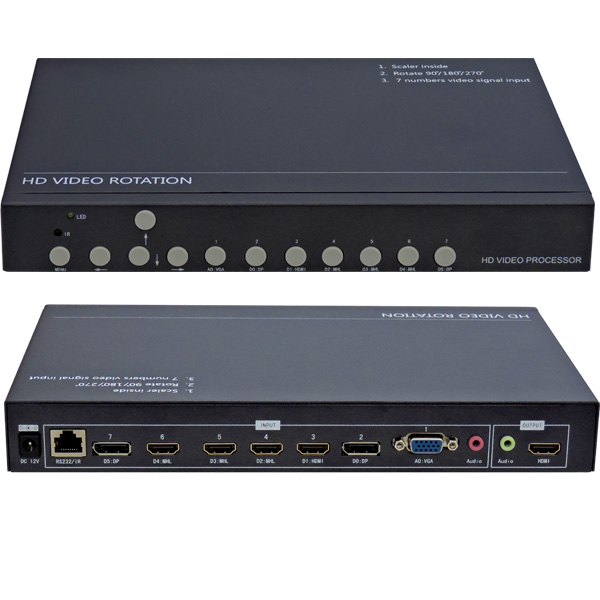

4K UHD Video switcher(KS-TN703)
1st. Product description
KS-tn703 is a high-performance image-fold line rotary switch, the internal high-speed image processing chip, its main function is to input multiple signal like HDMI, DP, phone MHL, VGA, can switch any one of the signal output to HDMI . Products can achieve sound signals and video synchronous switch in different formats, by setting to achieve rotate the image the degree of 90,180,270. And the product input and output resolution is up to 4K x 2K (3840x2160, output refresh rate up to 60Hz.)
2nd. Detailed function

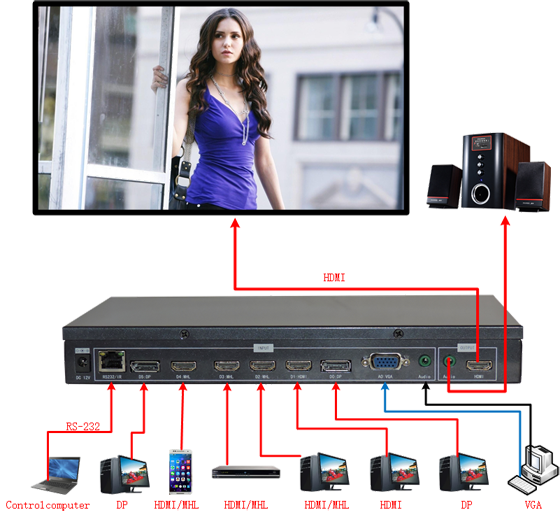

2.1 input signal
Supports 1 channel VGA, 2 channel DP (DisplayPort), 4 channel HDMI, 1 channel Audio (binding VGA signal) signal input, the input signal can support up to 3840 * 2160 @ 60HZ,and backward compatible.
2.2 Phone MHL input
3 channel HDMI port of product directly support MHL signal input, through the MHL to HDMI cable to connect the phone, can display images output of the phone and to achieve this feature requires phone support MHL function.
2.3 output signal
1 channel HDMI 2.0 and 1 channel Audio stereo output, the output resolution optional supports 3840x2160 @ 60Hz, 3840x2160 @ 30Hz, 2560x1440@ 60Hz and 1920x1080 @ 60HZ;
2.4 Switching function
By remote control, the keys of the chassis, the control software, or the center control,it can be switched any one of the input signals into HDMI signal output to the display unit, and have achieved video, audio synchronous handover;
2.5 Fold line function
Signals of different resolutions, different refresh rates as well as VGA, DP, HDMI, MHL different formats, through the device times the line function to convert fixed resolution HDMI signal output, the output optional resolution of 3840*2160 @ 60Hz ,3840*2160 @ 30Hz, 1920*1080 @ 60Hz or 2560*1440@60Hz
2.6 Image rotation function
By infrared remote control, cabinet buttons realize the image 90 degrees, 180 degrees, 270 degrees rotation for the site-specific needs of certain image rotation, as shown below:
