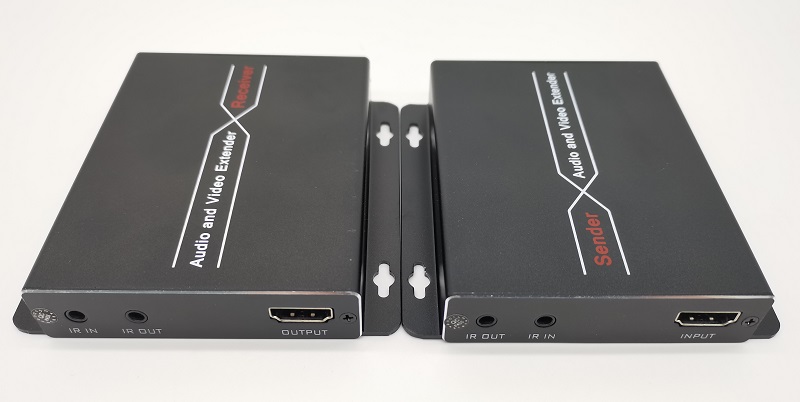

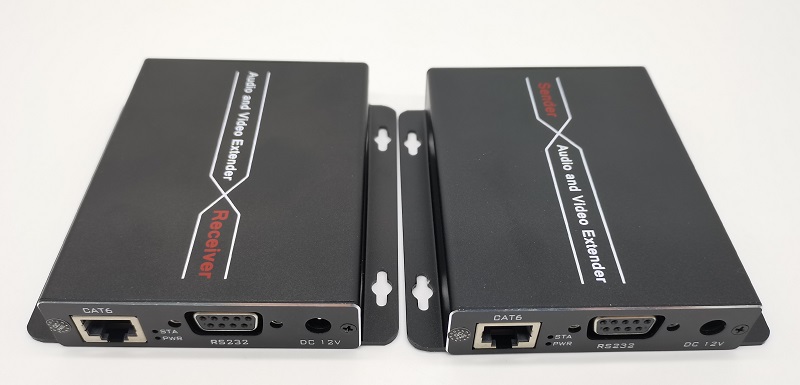

HDBaset 70 meter Transimitter (KS-HD70)
1st. Product Introduction
KS-HD70 is a high-performance HDMI Image transmission devices, its main feature is a network cable transmittier HDMI video signal without compression and delay-free,It transmission 70meter distance, maximum support 3840*2160@30Hz ultra high resolution transmission while supporting IR Bi-directional transmission of infrared remote control signals and RS-232 Serial bi-directional transmission of the signal.
HD signal extenders usually require compression of the signals at the extenderer can transmit signals through cable, HD video signal through the receiver decodes the signal into. As chip bandwidth issues that need larger image signal compression, which leads to sharp decline in the quality of the image as a whole and become very unclear. And preparation and decoding process takes a long time, it may lead to transfer to Terminal than the original screen image has a long delay.By KS-HD70 Unique image processing technology for HD video transmission, to full HD video image without compression, transfer without delay to display terminals. TK-HD70 HD transmission advantage is not just the absence of compression, HD video signal extendered without delay or extend the synchronization RS-232 serial port signals and IR infrared remote control signals, users can use a network cable conveniently packaged set of multiple signal transmission, Reduced to a large extent user projects needed to construct a variety of different cable problem, but also greatly reduce the costs associated with the user.
2nd. main functions
- ►Supports full HD 1080p@60Hz,3D , 3840 × 2160@30Hz HDMI Signal transmission
- ►1080p Full HD signal through Cat6a Lines can be extended 70 M
-
►use HDBaset Technical support HDMI video signal extendered without compression and without delay
- ►Support bi-directional infrared signals back to the serial port RS-232 Two-way signal transmission
- ►Support HDCP 、 CEC 、 24 -Bit color depth
- ►Support uncompressed audio LPCM And compressed audio DTS-HD,Dolby True HD
- ►The use of POC Power supply, just as one end of the extenderer or the receiver for 12V Power supply
