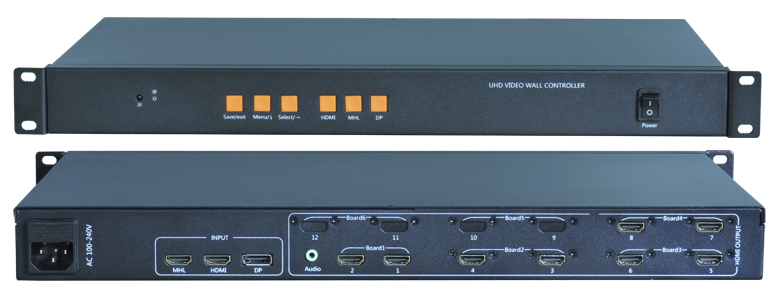

Product Brief
       KS-UH1X series is a customized 4K multi screen mosaic device, its main function is to display a 3840*2160 Ultra HD 4K image on the M x N splicing display unit. The product uses the DSP+FPGE advanced image processing technology, the HDMI input signal maximum can be HDMI2.0 (HDCP2.2), namely 3840x2160@60HZ, even when playing fast dynamic picture will not delay, frame loss is like.
       The product characteristics to show its superior performance and high resolution, widely applied to display high-definition video image of the exhibition hall, and the need to display more clear and rich details of some special places, such as map display, GPS positioning system, oil monitoring, satellite positioning, management team combat command kinds of super resolution image displayed on the screen the working environment.
major function:
1 、 input signal
Support 1 channel HDMI, 1 channel MHL and 1 channel DP signal input.
* HDMI ports can support maximum 3840x2160@60Hz signal input;
* MHL is compatible with 3840x2160@30Hz HDMI input and compatible with MHL signal input;
* supports both 1 channel DP signal inputs with a maximum resolution of up to 3840x2160@60Hz.
2 、 output signal
Support 4 channel HDMI signal output, output resolution 1920x1080@60Hz.
3、 signal switching function
Support 1 channel HDMI, 1 channel MHL and 1 channel DP signal input. The signal switch can be automatically identified by the remote controller, the cabinet key, or by the input signal.
When the device is set as an automatic identification signal and the input port is not connected with the input signal, the signal is switched on to any input port to automatically switch to the port, and the splicing screen displays the port signal.
4、picture mosaic function
Modular design, single machine can be customized 2 to 12 screen splicing, such as 1x2, 2x2 common picture mosaic picture mosaic, 2x3 four or 3x2 six, 2x4 eight screen picture mosaic, mosaic picture mosaic, 3x3 nine and 3x4 twelve 2x5 ten picture mosaic picture mosaic etc..
5, the image rotation function

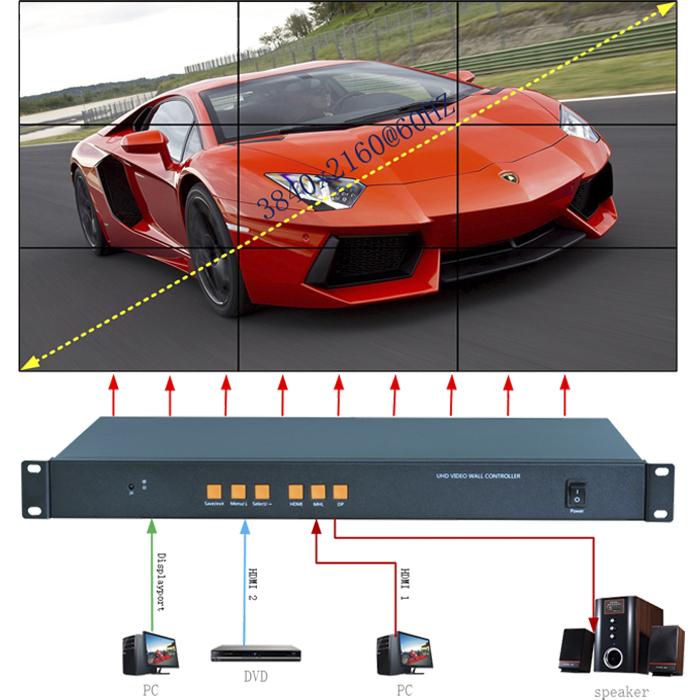

Compared with the common stitching products, the KS-UH1X Series picture stitching device has 180 degree flip function for the group signals. When the user uses the common LCD TV splicing, the upper liquid crystal TV is turned 180 degrees, thereby greatly reducing the splicing gap of the liquid crystal and reducing the distortion caused by the large side seam of the image, as shown in the following picture:

6、 Audio function
6.1 、 the input signals HDMI, MHL and DP support the audio input function;
6.2 、 the output HDMI is connected with the equipment with audio function input, so that the audio visual synchronous play can be realized;
6.3 、 support 3.5mm headphone interface, left and right channel stereo, independent output, connect stereo sound.
