KS-5000A LED Video Processer

1^st. Product Overview

    KS-5000A LED video processor is a high-performance full-color LED video processor, using advanced European and American video processing chip for program design. The product design use 30 bit digital video processing technology, advanced interlacing signal processing and seamless switching technology for professional demonstration environment.

    Compared with other ordinary LED full-color video processors , KS-5000A support the highest resolution can reach 3840x660@60Hz; signal source input more, support 1 DVI, 2 HDMI, 2 VGA, 2 BNC Road, a total of 7 input signals.

2^nd. Functional features

2.1) more input interfaces

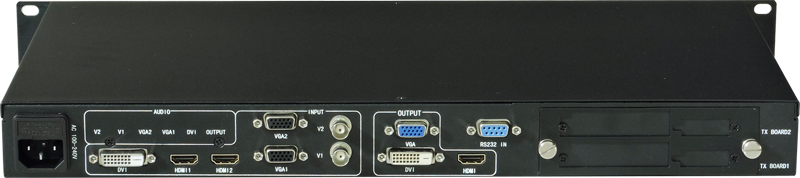

KS-5000A supports 2 channel CVBS video, 2 channel VGA, 2 channel HDMI and 1 channel DVI signal input.

2.2) multi interface output

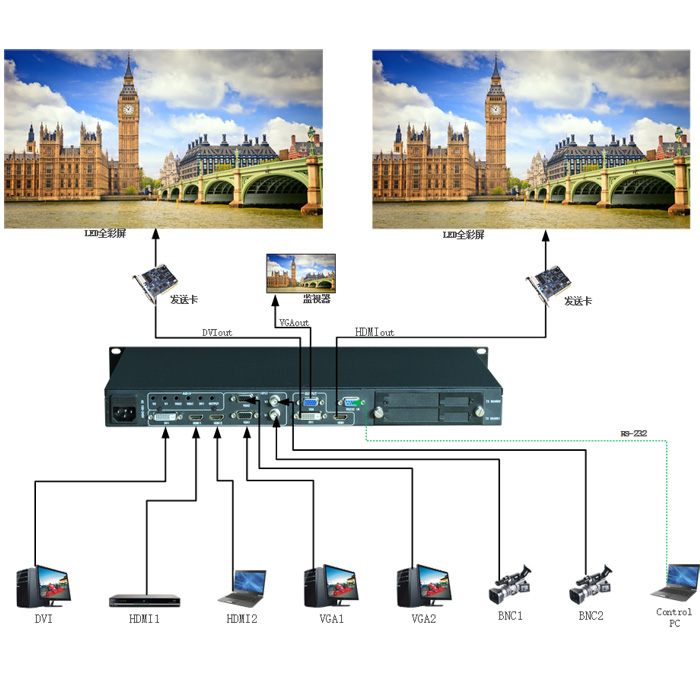

1 channel HDMI, 1 channel DVI and 1 channel VGA signal synchronous output, HDMI and DVI can be connected to send transmission card, VGA for monitoring.

2.3) multi-resolution output, up to 3840x660@60Hz:

1024X768@60Hz 1280x720@60Hz 1280x720@50Hz 1440x900@60Hz 1280x1024@60Hz 1366x768@60Hz

 1600x1200@60Hz 1680x1050@60Hz 1920x1080@60Hz 1920x1080@50Hz 1920x1200@60Hz 1024x1280@60Hz

 2048x640@60Hz 2048x1152@60Hz 2304x1152@60Hz 2560x816@60Hz   1536x1536@60Hz   3840x660@60Hz

2.4) seamless switching

Provides seamless, fast cutting and fading switching effects to enhance and render a professional quality presentation screen.

2.5) in an arbitrary position and size

The signal source, the PIP screen size, screen position can be adjusted, truly arbitrary control.

2.6) audio customization

Supports all custom input, audio and synchronous switching functions. The HDMI signal is embedded with audio, VGA, DVI and BNC signals, and audio signals are input, and the HDMI is embedded with audio output. Meanwhile, it supports an independent audio output.

2.7) picture freeze

Support screen freeze feature, so you can always capture video wonderful moments.

2.8) one button black screen function

Support one button black screen switching function, convenient for some need to completely close the display content or reduce indoor brightness of the place or instant, convenient and practical.

2.9) broadcast level image scaling engine

The KS-5000A uses a high performance 30 bit Faroudja DCDi image scaling engine that converts the resolution of the signal at various resolutions to a downward or upward image resolution.

2.10) a LED video processor that can be spliced

Multiple LED video processor front-end increased signal distributor, through simple splicing settings, do not need to buy expensive splicing controller can realize super resolution, LED full color display, the largest number of stitching up to 10x10.

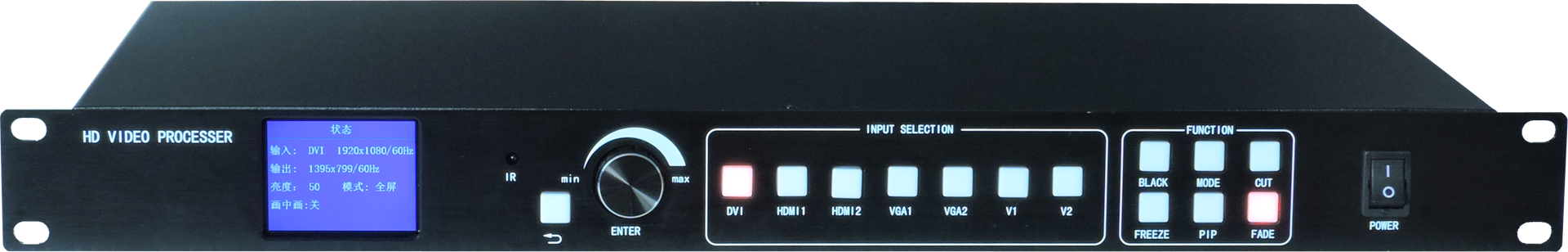

2.11) easy to use interface

An intuitive LCD interface, clear buttons, light tips, simplifies the installation and control of the system.
