KS-5000B HD Seamless Switcher

1^st. Product Overview

KS-5000B is a high-performance seamless switch, using advanced European and American video processing chip for program design.Product design uses 30 bit digital image processing technology, all input signals can support fast cut switching and fade switching,No black screen during switching.

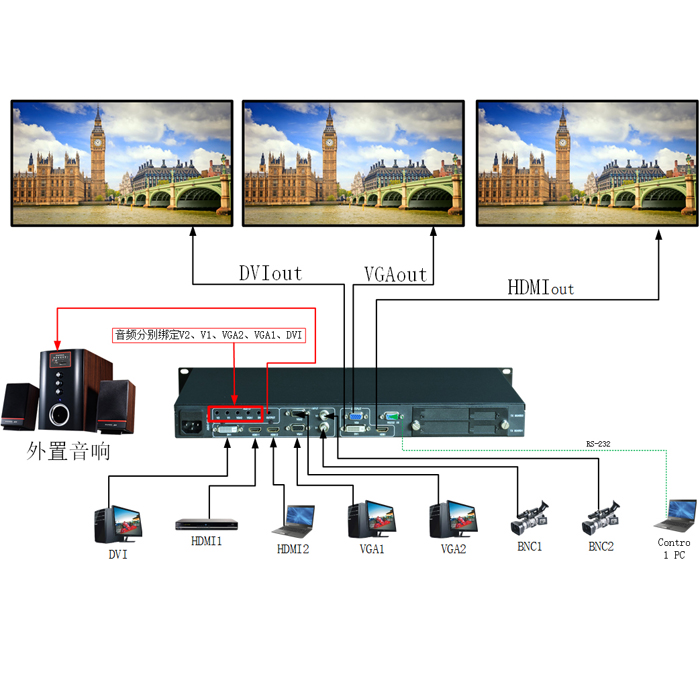

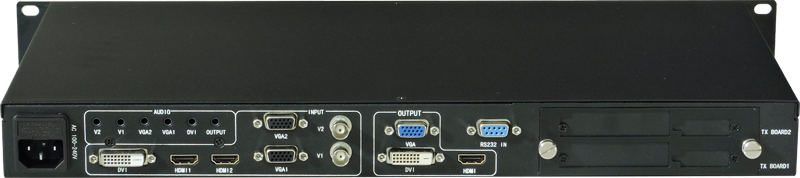

KS-5000B seamless switch can support 2 channel HDMI, 2 channel VGA, 2 channel BNC and 1 channel DVI signal input,The HDMI signal is embedded with audio, and the VGA, DVI and BNC signals are bound to the external audio signals, and all input signals can be implemented as audio Frequency synchronization switching.

Scaler inside,all input signals can be changed to 1 channel  VGA,1 channel HDMI,1 channel DVI output,and analog stereo audio awith external 3.5mm aperture output, connected to the external audio.

Through high-definition seamless switch, the front end of different resolutions, different refresh rates, different formats of signals converted into a unified VGA, HDMI, DVI format output, products are widely used in the mixed signal requirements of seamless switching.

2^nd. Function

2.1)、Seamless switch

The input signals can be fast cut switched and fade switched, and the switching process without  black screen, so as to enhance and present a professional quality demonstration screen, and simultaneously realize the synchronous switching of audio and video signals. The following is the fade output effect:



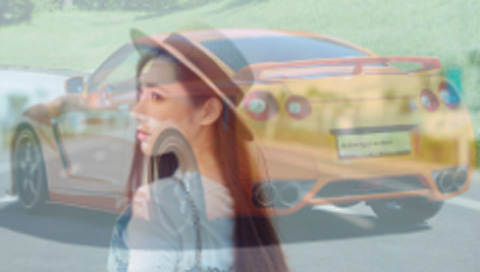

                  Before switch                                    Switch process                                         After switch



2.2) mixed signal input

Support 2 channel CVBS, 2 channel VGA, 2 channel HDMI, 1 channel DVI input signal, HDMI signal with embedded audio, VGA, DVI, CVBS signal Bond with external audio input interface, can realize all the input signal of the audio and video synchronization switching function.

2.3) multi interface output

The input signal is converted into 1 channel HDMI, 1 channel DVI and 1 channel VGA signals after the format conversion, and the three inputs display the same image content at the same time.

2.4) multiresolution output

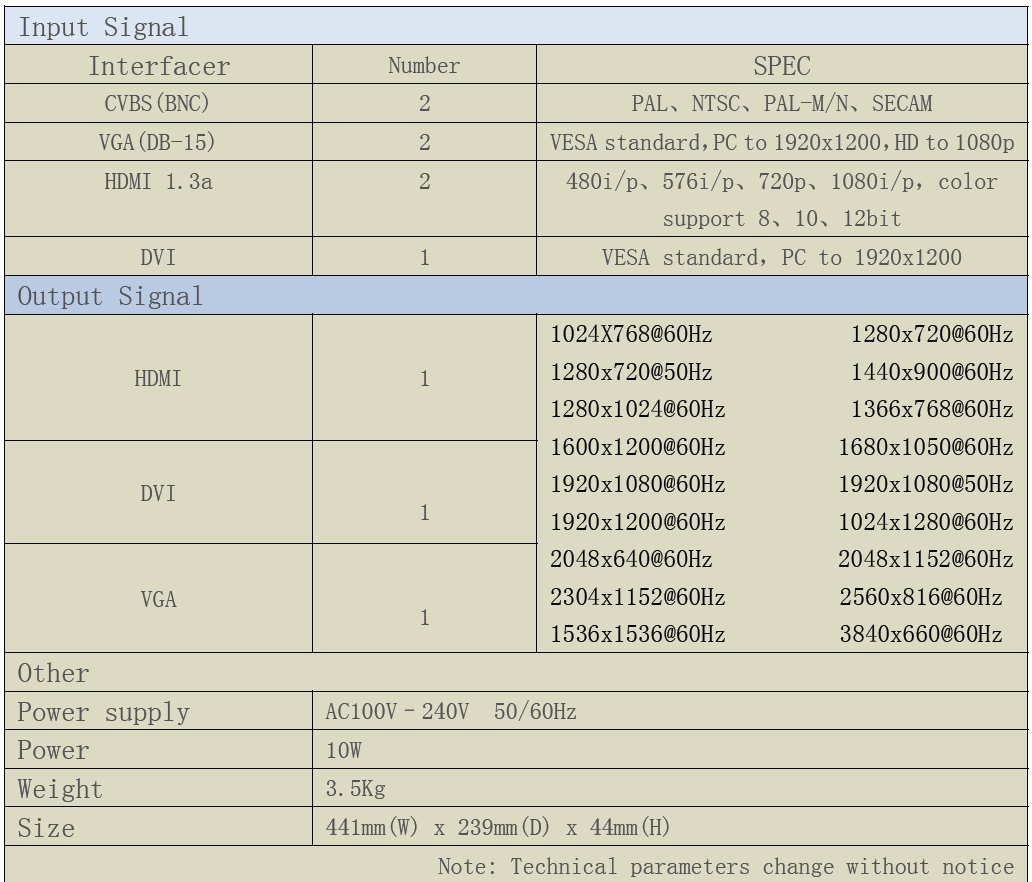

The output signal of KS-5000B seamless switch support for different resolution and refresh rate, the user can according to the characteristics of the display terminal to select the appropriate resolution and refresh rate to output, and display terminal signal format, this function completely, to solve some signal source and the display terminal mismatch problem. The output resolution is as follows:

1024X768@60Hz   1280x720@60Hz   1280x720@50Hz    1440x900@60Hz    1280x1024@60Hz      1366x768@60Hz

1600x1200@60Hz  1680x1050@60Hz   1920x1080@60Hz   1920x1080@50Hz  1920x1200@60Hz     1024x1280@60Hz

2048x640@60Hz        2048x1152@60Hz     2304x1152@60Hz        2560x816@60Hz     1536x1536@60Hz     3840x660@60Hz

2.5) in an arbitrary position and size

Support two input signals at the same time, do the painting, picture in picture, window, overlay, roaming, arbitrary size and position of the function, as shown below:

2.6) image capture function

The user can cut any part of the input signal according to its own requirements and display it in the full screen of the large display unit, as shown in the following picture:

2.7) audio function

Supports all custom input, audio and synchronous switching functions. The HDMI signal is embedded with audio, VGA, DVI and CVBS signals, and audio signals are input, and the HDMI is embedded with audio output. Meanwhile, it supports an independent audio output.

2.8) Picture freeze

Support screen freeze feature, so you can always capture video, wonderful moments, and save it on the screen.

2.9)  Black screen

Support one button black screen switching function, convenient for some need to completely close the display content or reduce indoor brightness of the place or instant, convenient and practical.

2.10) Seamless splicing switch

A signal distributor is added at the front end of a plurality of seamless switcher, and the stitching can be realized by a simple splicing setting, and the maximum number of splicing can reach 10x10.

2.11) Easy to opreate with LCD display interface

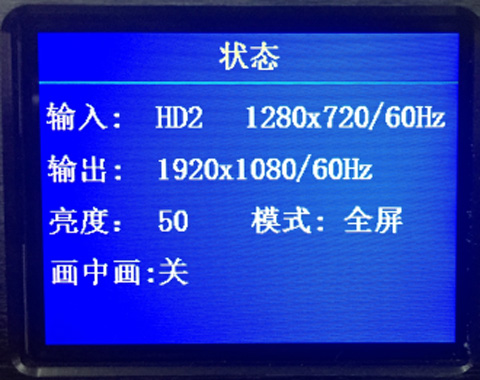

Front panel of the device with a built-in LCD display screen, the screen can be directly to the machine working state, such as the signal source, input resolution, switching mode, PIP mode switch etc....



2.12) Clear push-button navigation

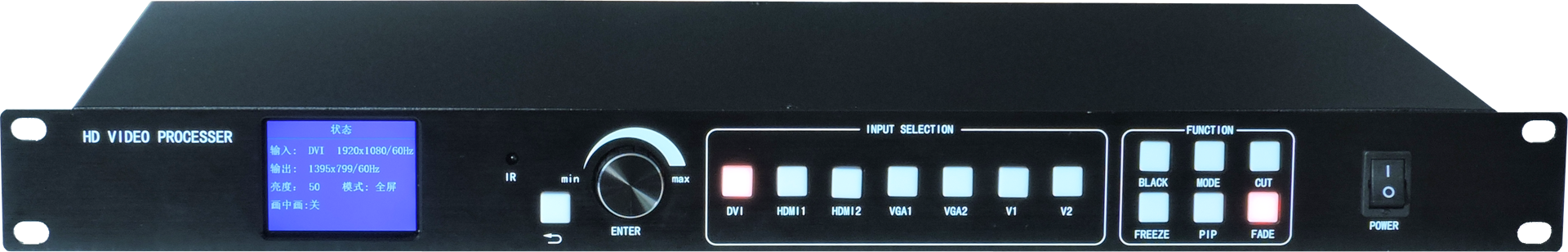

All equipment ANJAN built-in indicator light, through the chassis button indicator navigation, you can very directly see the device working conditions, such as the current display signal channel, seamless splicing mode...

2.13) A variety of control methods

The full function control of the equipment can be realized by the key of the cabinet, and the interface control software can also be supported by RS-232, infrared remote control and open control code central control.
