1. Product Overview
    KS-K1 is a professional mobile phone and PAD vertical screen display device, the internal use of high-speed picture processing chip, its main function is to mobile or PAD image content real-time, synchronous display to high-definition vertical screen display unit.
    KS-K1 supports 1 HDMI input, 1 HDMI compatible with MHL, 1 DP, the signal for a variety of formats and format conversion times line processing into HDMI output signal of 1920*1080, and can be set at 90, 180, 270 degree rotation and for the mobile phone signal cut off the black side function of all signals are.

2. Function details

2.1 、 input signal
   Support 1 channel HDMI, 1 channel HDMI compatible MHL, 1 channel DP three signal input, input signal can support 3840*2160@60Hz highest, and downward compatible.
2.2、 mobile MHL input function
   Product 1 channel HDMI port, directly support the MHL signal input, through the MHL to HDMI connection line to connect the phone, you can directly display the output of the phone image, to achieve the function, the need for mobile support MHL function.
2.3、 output signal
   2 channel HDMI signal synchronous output same picture, 1 channel Audio stereo audio output, output resolution is 1920x1080@60Hz;
2.4、 double line function
   With different resolutions, different refresh rates and different formats, the fixed HDMI signal and fixed resolution output are converted through the device double line function, and the output resolution is 1920x1080@60Hz;
2.5、 the image rotation function

  Through infrared remote control, chassis buttons to achieve the image of 90 degrees, 180 degrees, 270 degrees rotation, for some of the specific needs of the rotating image of the site, as shown in the following picture:

2.6、 mobile vertical screen with the screen display function

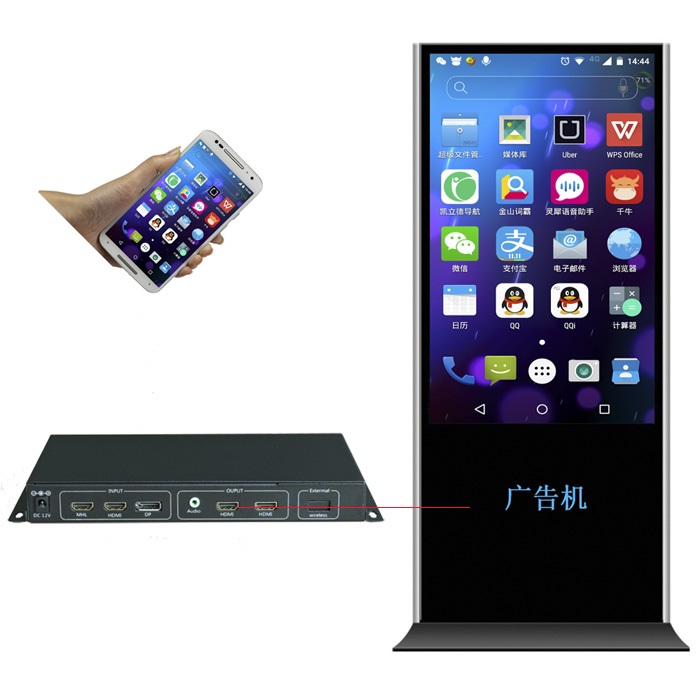

   Through the KS-K1 mobile phone vertical screen same screen throwing device, the mobile phone picture or the PAD picture can be displayed on the screen to the LCD TV set, the advertisement machine or other display units, as follows:

3.  Control mode

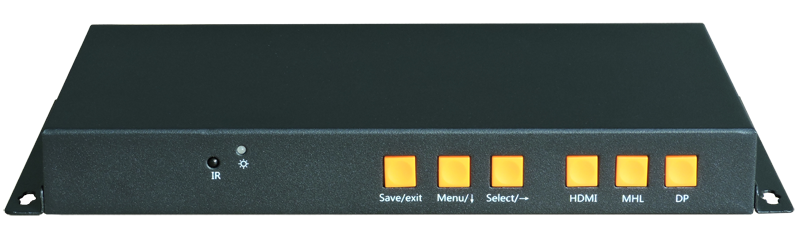

     Infrared remote control, chassis keys to control the image switching, image rotation, image removal of black edge function, simple and convenient operation.

Name	Specification

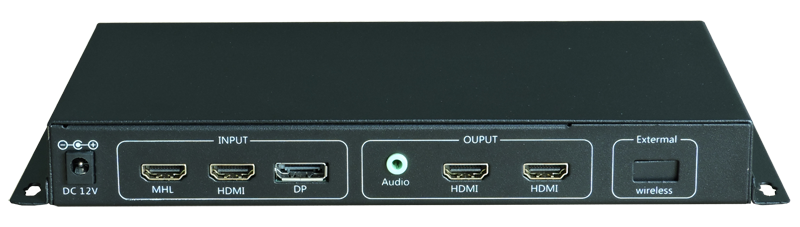

Input signal
D P  x 1	DisplayPort 1.1
MHL x 1	HDMI1.4，support MHL signal
HDMI x 1	HDMI2.0
Identification mode	Automatic identification, support manual adjustable
Output signal
HDMI x 2	HDMI1.3,1920x1080P@60Hz；
Audio x 1	3.5mm interfacer，stereo audio
Other
Control	IR,Key-Button
Power supply	DC-12V
Power waster	10W
Size	236mm（L）x140mm（D）x30mm（H）
Weight	0.8Kg
